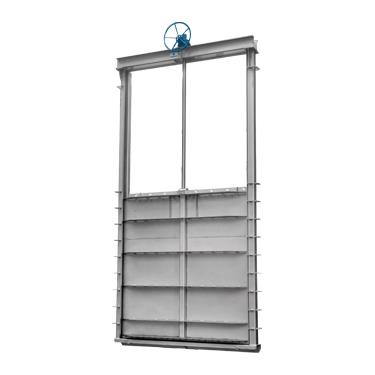

Four-side sealing flush bottom wall mounted penstock
Square or rectangular port sliding wall penstocks sealed on all 4 sides.
Used for on-off or control applications in wells, tanks, pipe outlets, etc.
Carbon or stainless steel fabricated construction, with tight sealing by means of elastomer seals.
Available in a wide range of dimensions and for many different pressure heads.
Handwheel, Pneumatic, Electric or Hydraulic, with a wide variety of actuator extensions available.
- MU - Wall penstock (DIN 19569-4 / BS 7775) (Catalogues) pdf - 2.77 MB
- MU - Slide gate (AWWA C561) (Catalogues) pdf - 2.05 MB
- installation maintenance operating instructions MU [EN] (Manuals) pdf - 3.07 MB
- MU standard 200x200 - 1200x1200 (Datasheets) pdf - 613.45 KB
- MU 1300x1300 - 1500x2000 (Datasheets) pdf - 626.35 KB
- MU 1300x1300-4000x4000 - Unidirectional (Datasheets) pdf - 570.25 KB
- MU 1300x1300-4000x4000 - Bidirectional (Datasheets) pdf - 569.92 KB
